Rack Mounted Lithium Ion Solar Battery Pack
| Basic Parameters | GRC4850 | GRC48100 | GRC48150 | GRC48200 | GRC48300 |
| Nominal Voltage(V) | 51.2 | 51.2 | 51.2 | 51.2 | 51.2 |
| Rated Capacity(Ah) | 50 | 100 | 150 | 200 | 300 |
| Dimensions(mm) | 385*442*134 | 382*442*225 | 443*442*227 | 510*442*246 | 735*560*246 |
| Weight(kg) | 29 | 47 | 70 | 90 | 119 |
| Cycle Life(time) | 3000-6000 | 3000-6000 | 3000-6000 | 3000-6000 | 3000-6000 |
| Charge Cut-off Voltage(V) | 58.4 | 58.4 | 58.4 | 58.4 | 58.4 |
| Discharge Cut-off Voltage(V) | 40 | 40 | 40 | 40 | 40 |
| Working Temperature | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ |
| Storage Temperature | -20℃~25℃ | -20℃~25℃ | -20℃~25℃ | -20℃~25℃ | -20℃~25℃ |

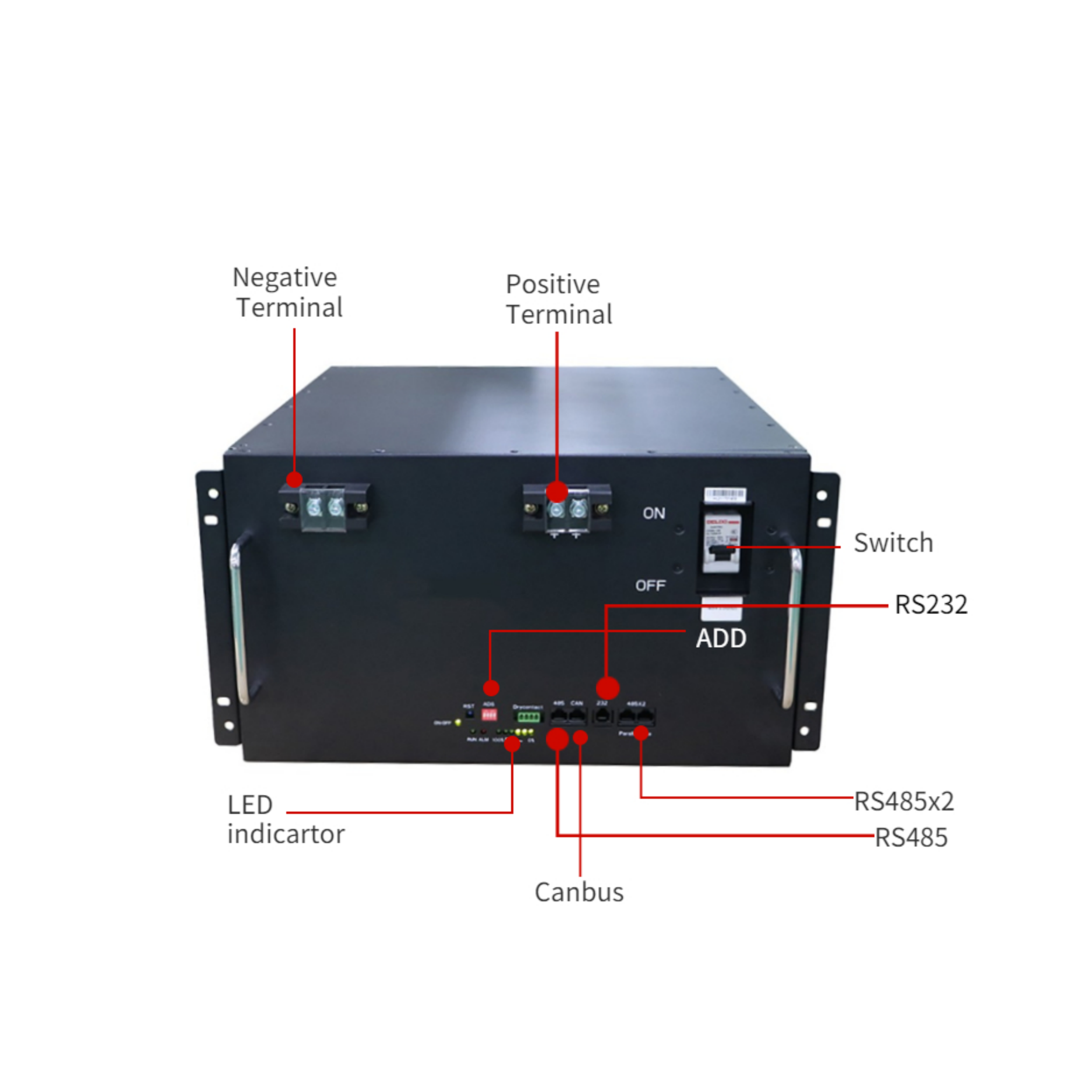

| Communication Port | RS485,RS232,CAN | RS485,RS232,CAN | RS485,RS232,CAN | RS485,RS232,CAN | RS485,RS232,CAN |

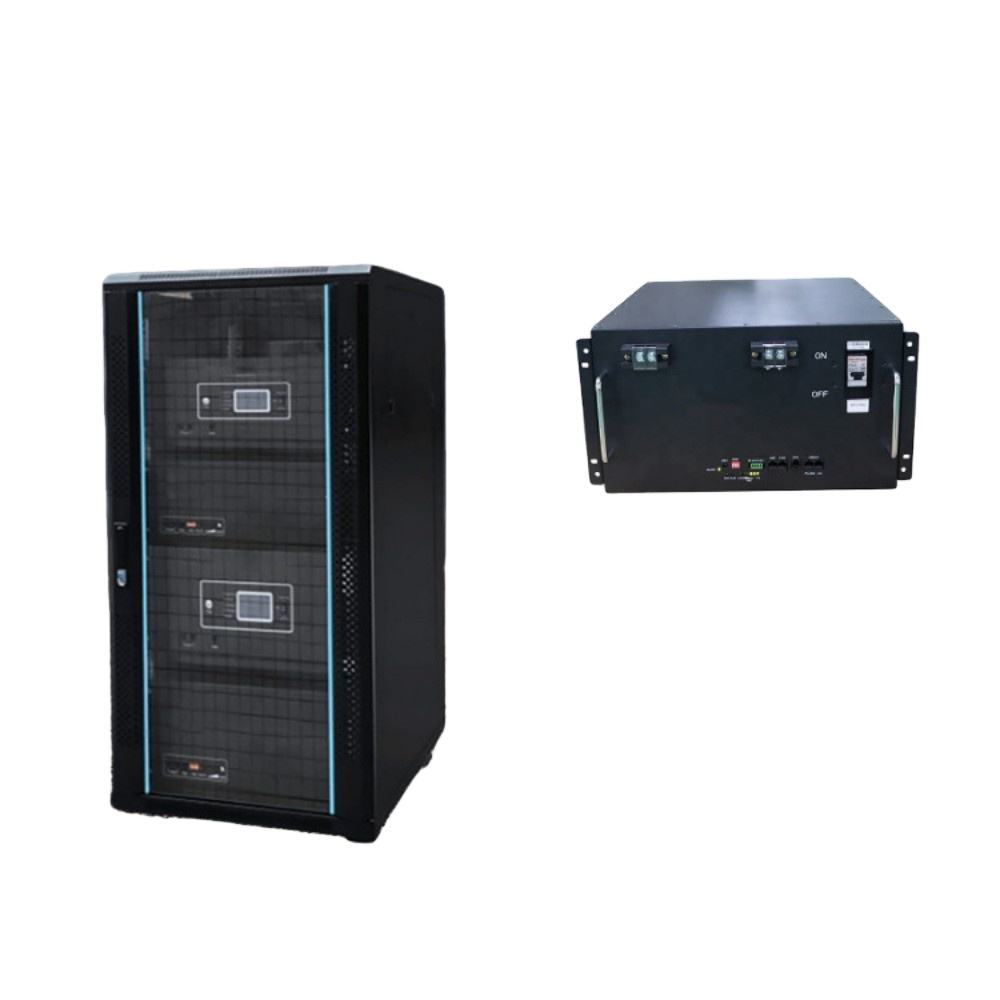

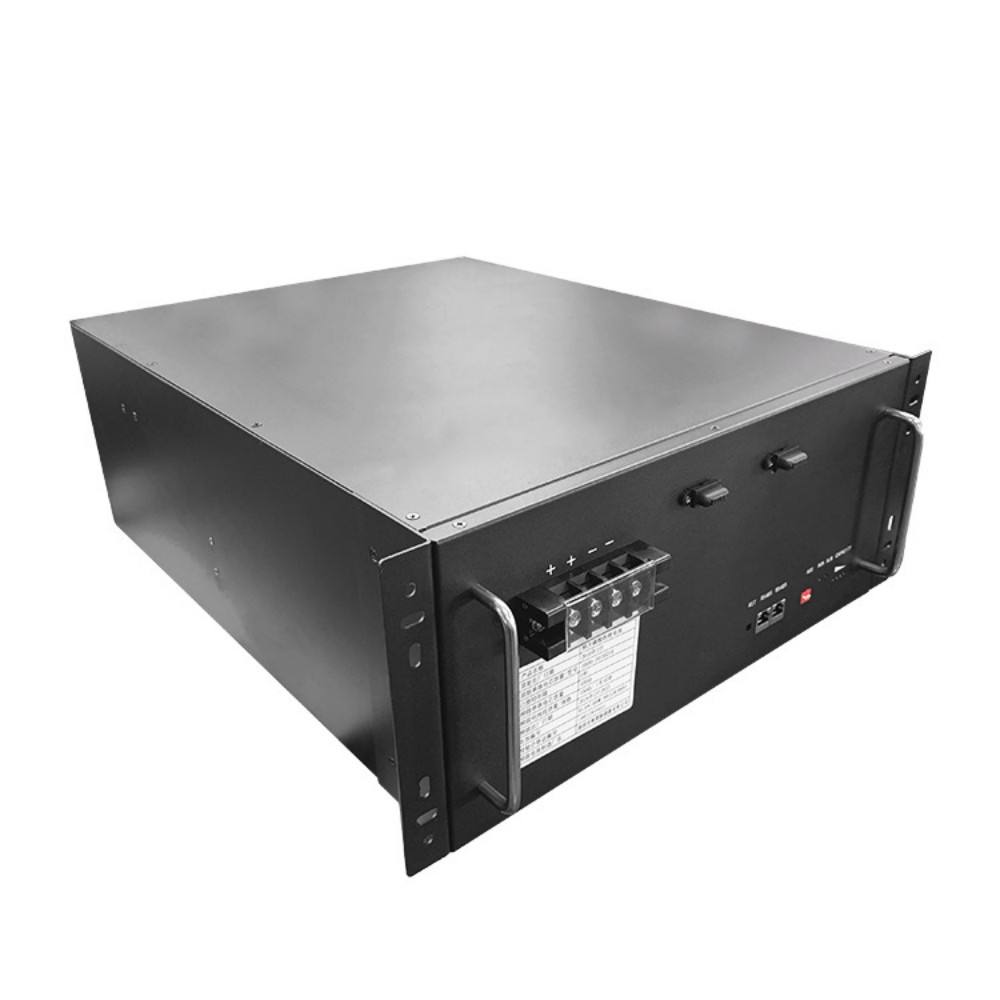

Rack mounted lithium-ion UPS with small size and large capacity to meet high power density requirements
Compared to lead-acid batteries, lithium batteries have obvious advantages in terms of capacity, volume, temperature range and service life, and the use of lithium batteries as a back-up energy source for UPS can greatly improve system performance. It meets the user's requirements for integrated and integrated installation to meet high power density requirements!
The lithium-ion power supply is a small, super-capacity, high-efficiency product in response to the growing demand for communications networks. The product uses a more efficient lithium iron phosphate battery as a power supply guarantee; the shape is designed using the current widely used 19-inch standard rack-mounted chassis, rack-mounted installation makes the machine better than traditional tower UPS power supply in terms of size (occupying less space), layout (link wiring in the cabinet), visual (unity and simplicity) and reliability (to prevent mismanagement and miscontact).
The rackmount UPS is smaller in size and has embedded installation specifications to meet the requirements of outdoor installation of communications equipment, and is widely used in: base stations, FTTB, access networks, group customer terminals, WIFI and other equipment, but also for broadcasting, electricity, finance, military, Internet and other industries, is a highly integrated, small, environmentally friendly, durable, reliable and safe new UPS uninterruptible power supply .
