Multiple applications 12V 100Ah lithium ion battery

Short Description:

Product name: Multiple applications 12V 100Ah lithium ion battery
Place of origin: Jiangsu, China
Model number: GRL23
Battery type: Prismatic
Capacity: 100Ah
Nominal Voltage: 12.8V


Product Detail

Product Tags

ABOUT

Main Product

Rechargeable battery. Lithium ion batteries, Lipo battery and LiFePO4 batteries. They're used in consumer products, energy storage system, power tool products and electric mobility products.

Discharging Rate

The discharging rate depends on the cell discharging rate and BMS.We customize the battery pack according to your application through using the suitable cell type and BMS.

Charging Rate

Usually we recommend you to charge the batteries with 0.2C current which will make the batteries with longer cycle life. Generally speaking, we suggest  charging rate to be within 1C current.

+
Years Of Experiences
+
Professional Experts
+
Talented People
W+
Happy Clients

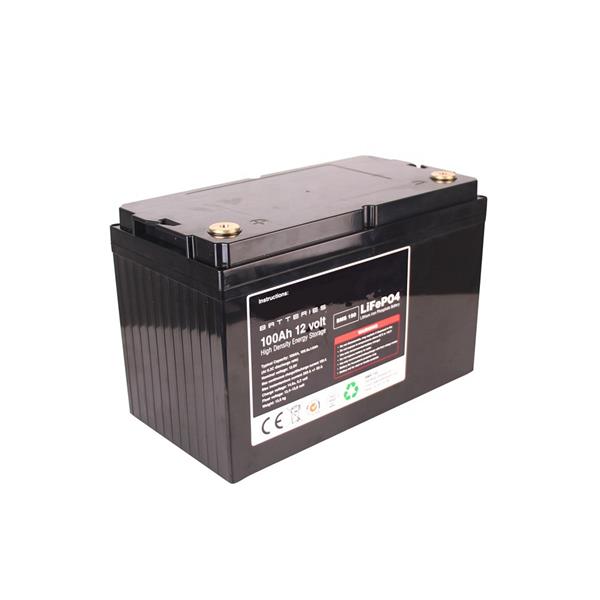

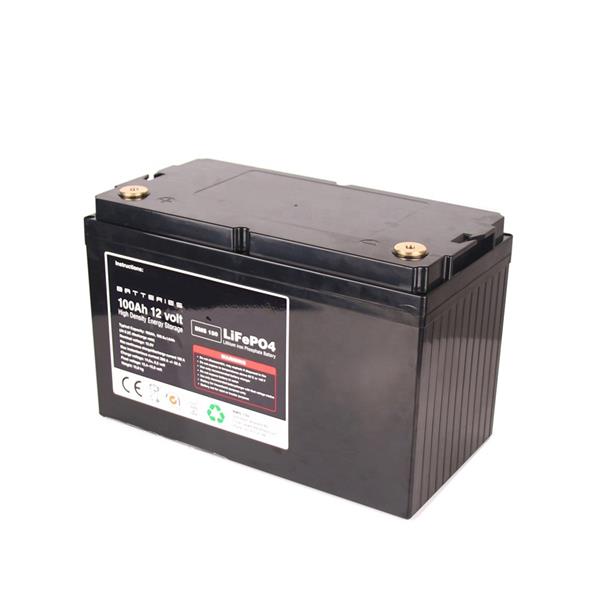

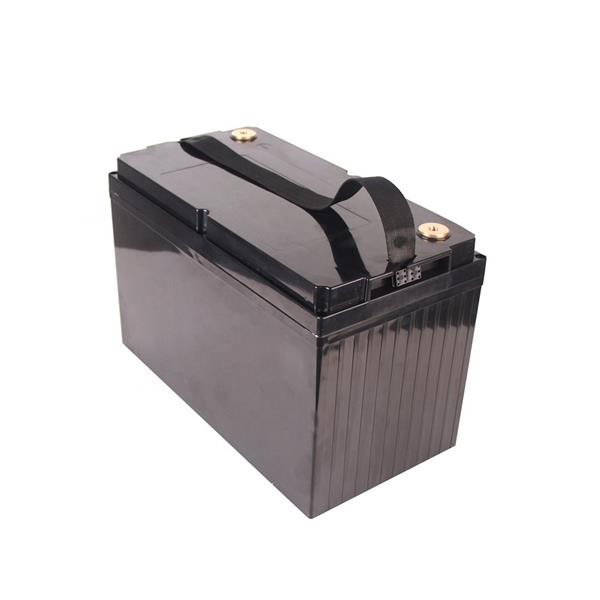

12V 100Ah Lithium ion battery

Product name 12V 100Ah Lithium ion Battery
Other attributes Warranty: 1year
Anode Material:LFP
Chargeable: Yes
Application: BOATS, Golf Carts, SUBMARINES, electric vehicles
Battery Size: 329*172*214mm
Brand Name: GruiChi
Certification:CE
Model Number:GRL23
Place of Origin: Jiangsu, China
Weight: 13.8kg
The charging ratio: 100%
The discharge rate: 100%
Battery Type: Pack
Nominal Capacity: 100Ah
Nominal Voltage: 12.8V
Charge End Voltage:14.6V
Discahrge Cut-off Voltage:10V
Peak Current:350A+/-50A
Max discharge current:150A
Max charge current:100A@1C
Cycle Life: 2000times
Protection: Over-charge
Components: Battery Cell+BMS+battery case+connector
Operating Temperature: -20℃~60℃
Sample size 330*173*215mm
Sample weight 14kg

It is easy to realize multi-mode combination to meet higher working voltage and larger working current. The capacity and performance of the lithium ion battery can be detected and diagnosed, so that the control system can realize the dispatching control of the power station load under the condition of predicting the battery capacity and performance. High safety and reliability: Under normal use conditions, the normal service life of the battery is not less than 15 years; in extreme cases, even if a failure occurs, it is still in the controlled range, and explosion, combustion, etc. It has good fast response and high rate charge and discharge capacity, generally requiring 5-10 times the charge and discharge capacity. High charge-discharge conversion efficiency, easy installation and maintenance, good environmental adaptability, and wide operating temperature range. Lithium ion batteries have a good effect in energy storage in power generation systems. As the technology of large-capacity battery energy storage systems, lithium iron phosphate batteries are also resistant to high temperatures and are the first choice for outdoor energy storage power sources.
