High efficiency 220V 600W solar PV power panels
ABOUT
High efficiency 220V 600W solar PV power panels
| Product name | 220V 600W solar pv panel |
| Place of origin | Jiangsu, China |
| Cell size | 182*182mm |
| Type | PERC, All Black, Standard Solar Panel |
| Panel Dimensions | 2464x1134x35mm |
| Panel Efficiency | 21.47% |
| Warranty | 25 years |
| Material | Monocrystalline Silicon |
| Power range | 550w-600w |
| Max. Power | 600w |
| Number of Cells | 156 |
| Application | Commercial |
| Front Glass | 3.2mm Tempered Glass Low Iron |
| Frame | Anodized Aluminium Alloy |
| OEM | Accptable |
| Backing Color | White, Black |
| Junction Box | IP68 |
| Sample size | 2464x1134x35mm |
| Sample weight | 33KG |

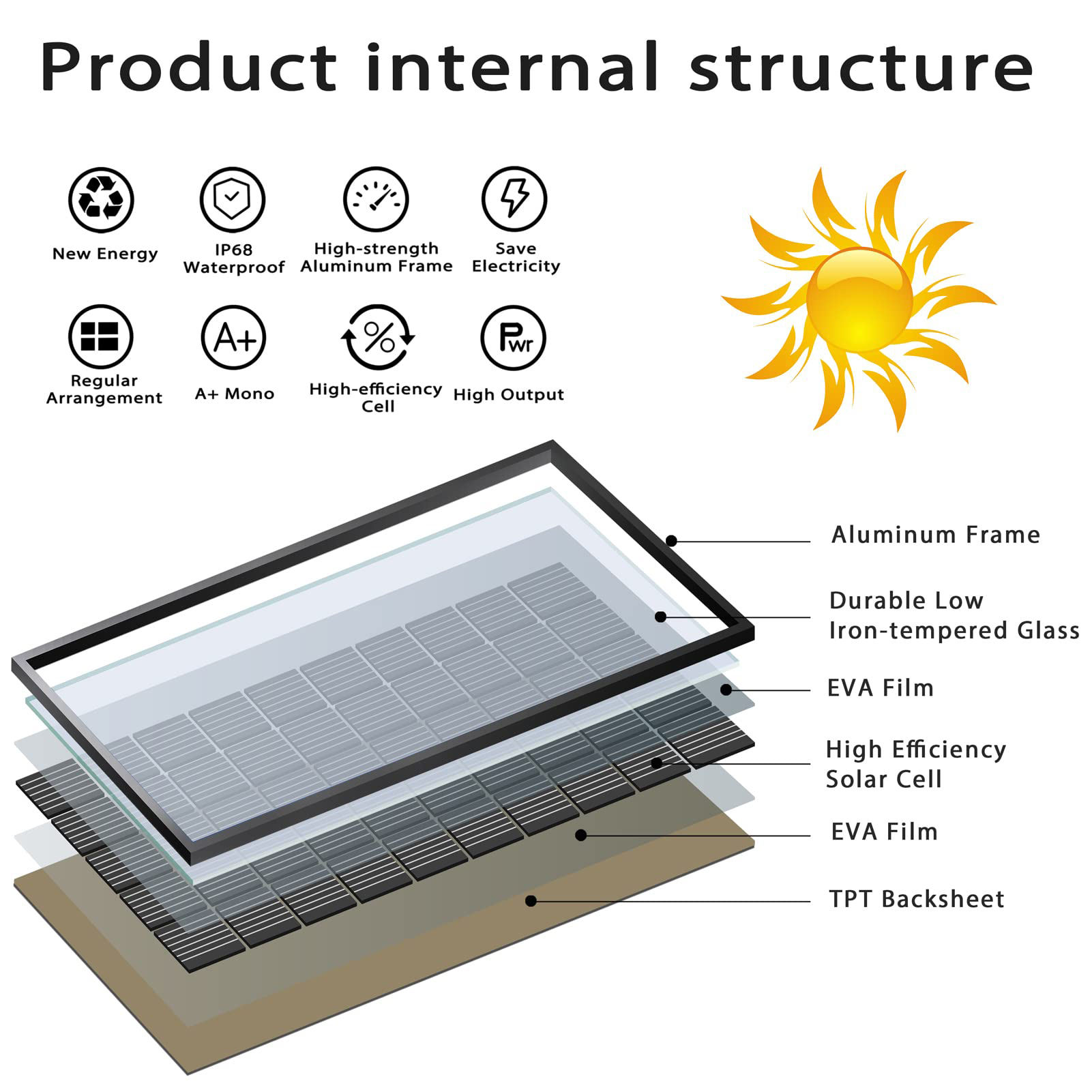

Solar power panels has tempered glass, which is anti-reflective glass. This means the transparency for normal brightness will be increased by 20 and the component efficiency will be also increased 296% at the same time. They have a long service life, about 25 years. The solar cells are high efficiency photovoltaic cells, which have a consistent appearance, no chromatic aberration, no splits, and no missing corners. And they have anti-PID grade certificate to ensure the quality. About the frame of solar panels, it is regular frame. The color of it can be chosen as silver or black. The frame can improve bearing capacity and prolong service life. It is designed as hammer tooth clamp to increase tensile strength. And it is seal design glue injection.

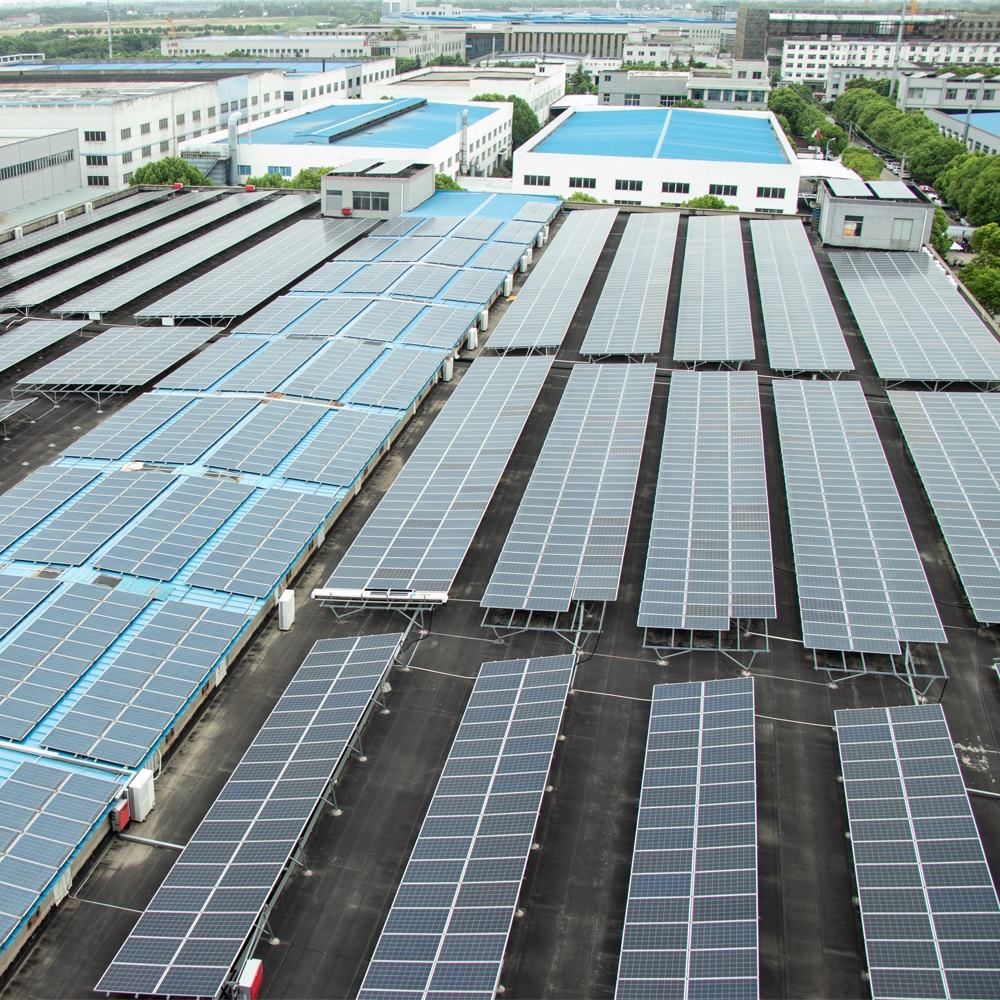

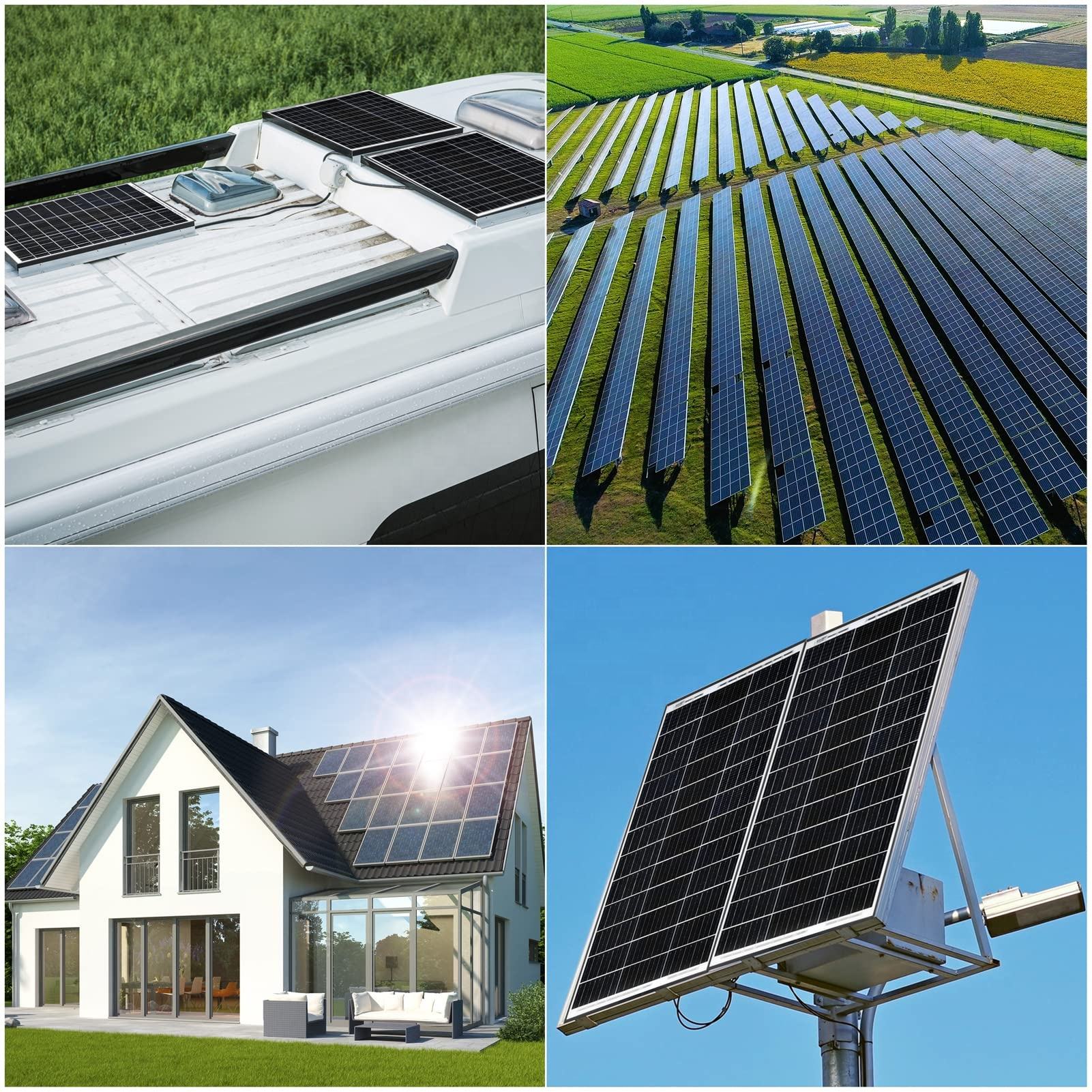

They have wide applications: photovoltaic street light, photovoltaic parking shed, photovoltaic bus station, photovoltaic Highway, floating photovoltaic power generation on water, photovoltaic noise barriers and etc.
