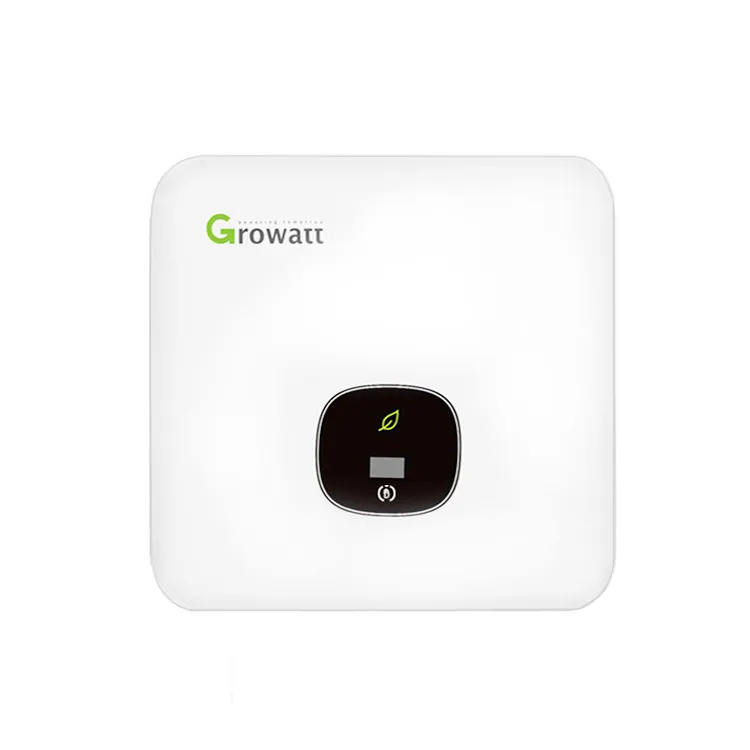

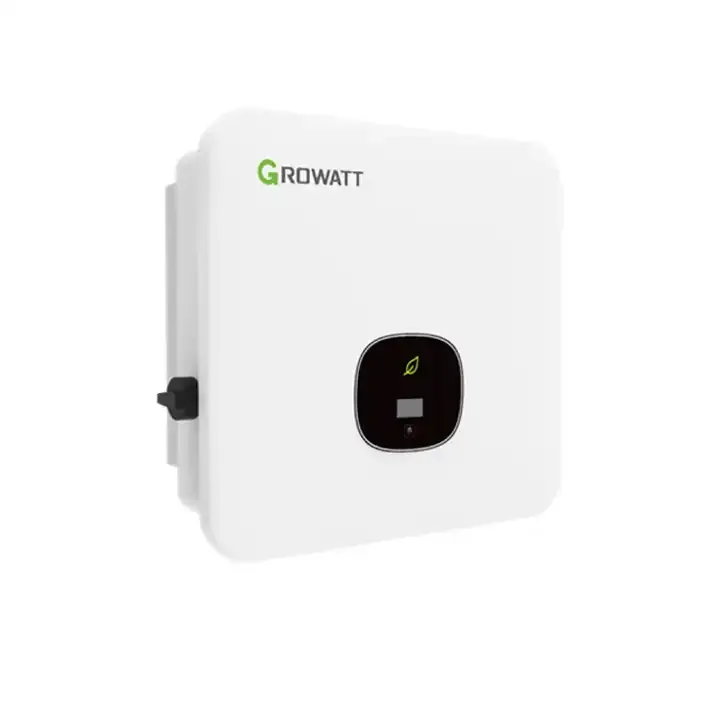

Growatt On Grid Three Phase Dual MPPT Inverter MOD 3-15KTL3-X

Model No.	MOD 3000TL3-XH
Max. recommended PV power	6000W
No. of MPP trackers	2
No. of PV strings per MPP tracker	1
Max. input current per MPP tracker	16A
Max. short-circuit current per MPP tracker	20A
Operating voltage range	600 V-950 V
AC nominal power	3000W
Max. AC apparent power	3300VA
Nominal AC voltage (range*)	220V/380V, 230V/400V (340-440V)
AC grid frequency (range*)	50/60 Hz (45-55Hz/55-65 Hz)
Dimensions (W / H / D)	425/387/147mm
Weight	12.5kg
Warranty: 5 years /10 years	Yes/Optional

Product Detail

Rechargeable battery, lithium ion battery, lipo battery and LiFePO4 battery. They're used in energy storage system and electric mobility products.

We assemble the battery with PCM/BMS which protection batteries from over-charge,over-discharge,over-current,short-circuit and high

Our payment term is usually 30% deposit before production and 70% balance before shipment. Other requirements also can negotiate.

Yes, we can support. Please inform us formally before our production and confirm the design firstly based on our sample.
