Full Black Solar Panel 400W 12V for Solaria Home Roof
|
Rated Power-Pm (W)
|
385
|
390
|
395
|
400
|
405
|
410
|
|
open-circuit Voltage-Voc(V)
|
36.76
|
36.85
|
37.98
|
37.07
|
37.23
|
37.32
|
|
short-circuit Current-Isc(A)
|
13.53
|
13.61
|
13.7
|
13.79
|
13.87
|
13.95
|
|
Working Voltage-Vmp(V)
|
30.44
|
30.64
|
30.84
|
31.01
|
31.21
|
31.45
|
|
Working Current-Imp(A)
|
12.65
|
12.73
|
12.81
|
12.9
|
12.98
|
13.04
|
|
Module Efficiency (%)
|
19.8
|
20.0
|
20.2
|
20.5
|
20.8
|
21.0
|
Our Advantages:

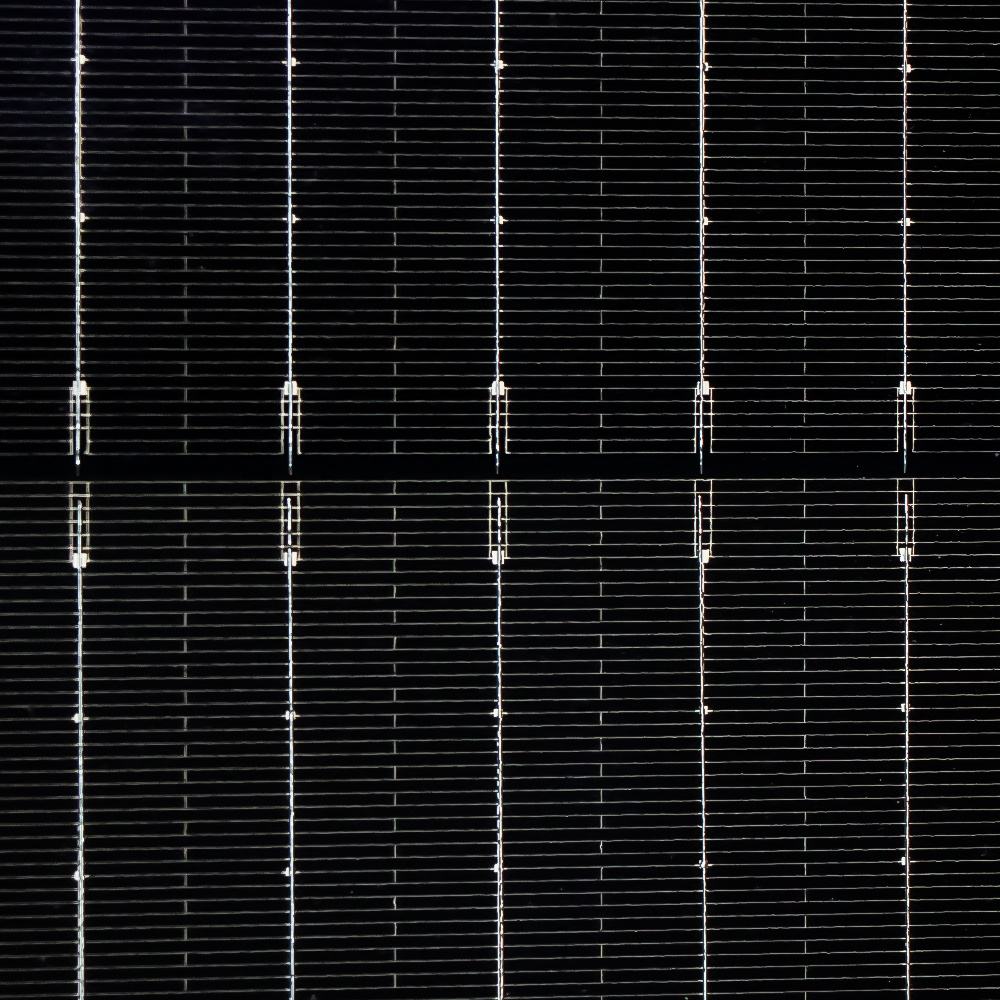

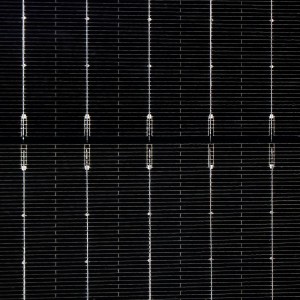

- MBB PERC Half Cut Cell
- Excellent Low-light Performance
- 100% Inspection Guarantee Reliability
- Anti PID
- Strengthened Mechanical Load
- High Density Packaging
All Dimensions in mm
The above drawing is a graphical representation of the product.
12 Years Material & Craft Quality Assurance
12 Years 90% Output Power Guarantee
30 Years 80% Output Power Guarantee

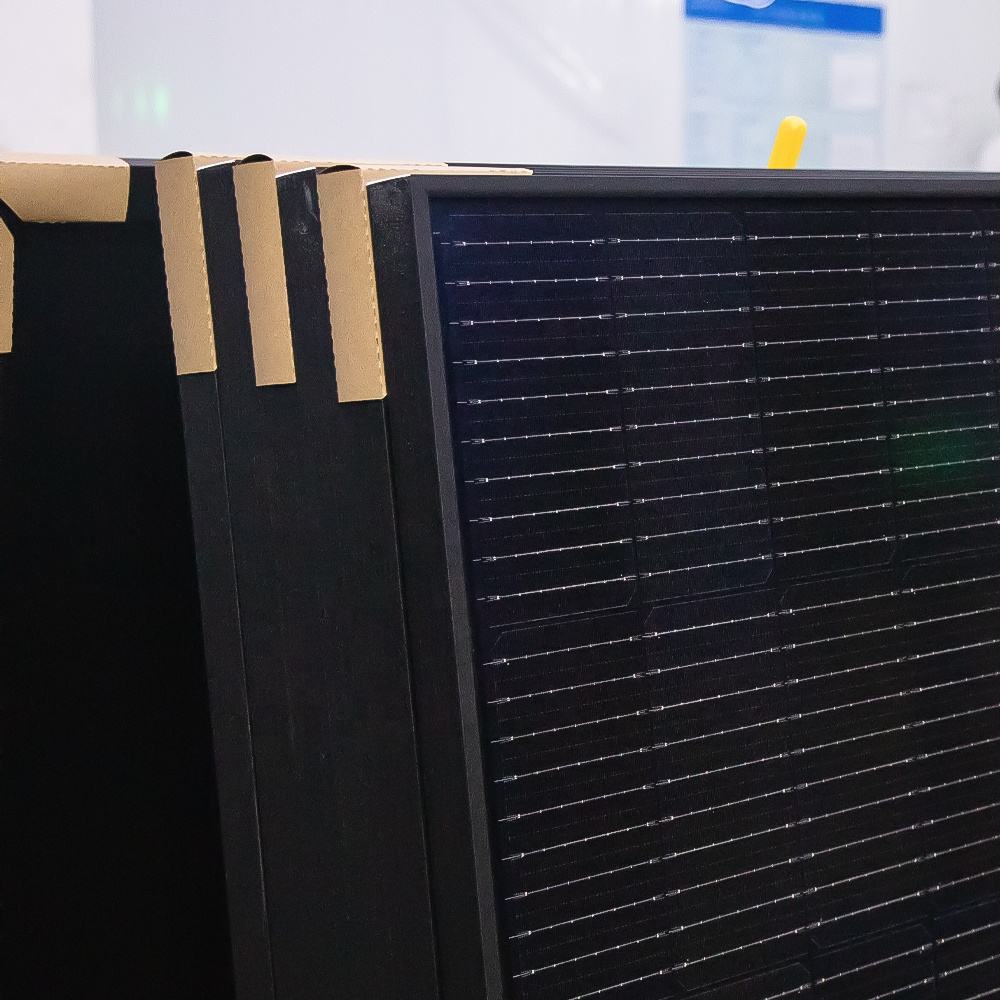

The full black monocrystalline solar panel adopts A class anti-solar attenuation cells and packaging design. The glue is all black, which can increase the effective light energy absorption of the product, increase the power generation efficiency, and enhance the machine performance. It has the advantages of high efficiency, high production capacity, and very stable power output. It has better performance in rainy and snowy weather than the boards on the market.
