Flexible Solar Panel 100W Mono Crystalline

Short Description:

Place of Origin:        Jiangsu, China

Type:                          PERC, Half Cell, Bifacial, All Black

Cell Size:                  161.7 CHAMFERED SINGLE CRYSTAL CELL

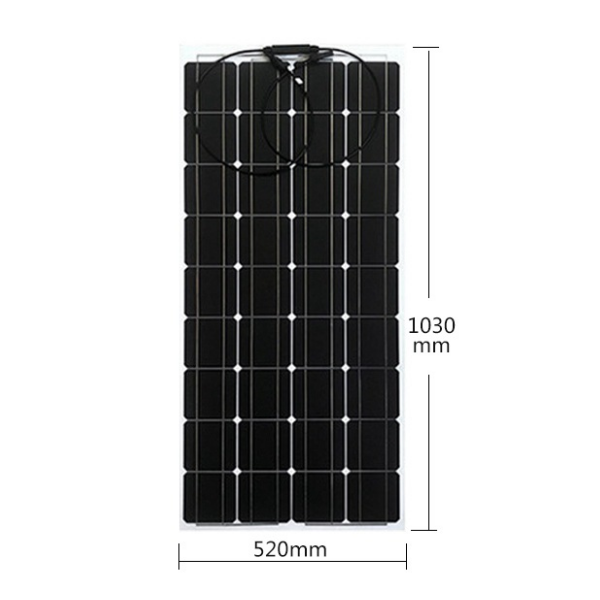

Panel Dimensions: 1030mm*520mm*2mm

Panel Efficiency:      22.8%

Certificate:               TUV/CE/IEC/ISO

Junction Box:           IP68

Glass:                        PET

OEM Order:             Acceptable

Warranty:                5 Years


Product Detail

Product Tags

ABOUT

Main Product

Rechargeable battery, lithium ion battery, lipo battery and LiFePO4 battery. They're used in energy storage system and electric mobility products.

Protect Function

We assemble the battery with PCM/BMS which protection batteries from over-charge,over-discharge,over-current,short-circuit and high

Payment Term

Our payment term is usually 30% deposit before production and 70% balance before shipment. Other requirements also can negotiate.

Customization

Yes, we can support. Please inform us formally before our production and confirm the design firstly based on our sample.

+
Years Of Experiences
+
Professional Experts
+
Talented People
W+
Happy Clients

Flexible Solar Panel 100W

Optimum power [Pmax] 100w
Operating voltage [Vmp] 18±0.1V
Operating current [Imp] 5.5A±0.5A
Short-circuit current [Isc] 6.04A±0.5A
Open circuit voltage [Voc] 21.6V±0.8V
Temperature coefficient voltage (0.065±0.015)%/℃
Temperature coefficient current  -(160±10)mA/℃
Temperature coefficient power -(0.5±0.05)%/℃
Maximum system voltage  1000V
