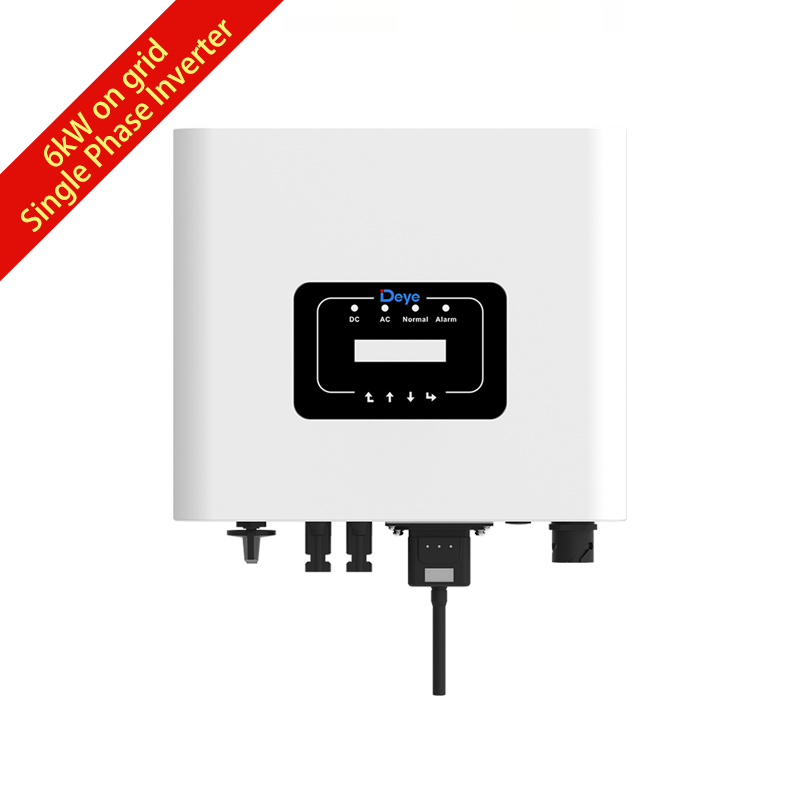

Deye 6kW Single Phase On Grid Solar Inverter
ABOUT
Deye 6kW Single Phase On Grid Solar Inverter
| Model | SUN-6K-G |
| Input Side | |
| Max. DC Input Power(kW) | 7.8 |
| Max. DC Input Voltage (V) | 550 |
| Start-up DC Input Voltage(V) | 80 |
| MPPT Operating Range(V) | 70-550 |
| Max. DC Input Current(A) | 13+13 |
| Max. Short Circuit Current (A) | 19.5+19.5 |
| Number of MPPT/Strings per MPPT | 2/1 |
| Output Side | |
| Rated Output Power(kW) | 6 |
| Max. Active Power(kW) | 6.6 |
| Rated AC Grid Voltage(V) | L/N/PE 220 / 230 (optional) |
| AC Grid Voltage Range(V) | 180Vac~300Vac(this may vary with grid standards) |
| Rated Grid Frequency(Hz) | 50 / 60 (Optional) |
| Operating Phase | Single phase |
| Rated AC Grid Output Current(A) | 27.3/26.1 |
| Max. AC Output Current(A) | 30/28.7 |
| Output Power Factor | 0.8 leading to 0.8 lagging |
| Grid Current THD | <3% |
| DC Injection Current(mA) | <0.5% |
| Grid Frequency Range | 47~52 or 57~62 (Optional) |
| Efficiency | |
| Max.Efficiency | 97.50% |
| Euro Efficiency | 97.30% |
| MPPT Efficiency | >99% |
| Protection | |
| DC Reverse-Polarity Protection | Yes |
| AC Short Circuit Protection | Yes |
| AC Output Overcurrent Protection | Yes |
| Output Overvoltage Protection | Yes |
| Insulation Resistance Protection | Yes |
| Ground Fault Monitoring | Yes |
| Abti-islanding Protection | Yes |
| Temperature Protection | Yes |
| Integrated DC Switch | Yes |
| Remote software upload | Yes |
| Remote change of operating parameters | Yes |
| Surge protection | DC Type II / AC Type II |
| General Data | |
| Size(mm) | 330W×323H×190D |
| Weight(kg) | 7.5 |
| Topology | Transformerless |
| Internal Consumption | <1W(Night) |
| Running Temperature | -25~65℃，>45℃ derating |
| Ingress Protection | IP65 |
| Noise Emission(Typical) | <35 dB |
| Cooling Concept | Natural cooling |
| Max. Operating Altitude Without Derating | 2000m |
| Designed Lifetime | 5years |
| Grid Connection Standard | VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150 |
| Operating Surroundings Humidity | 0-100% |
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
| Features | |
| DC Connection | MC-4 mateable |
| AC Connection | IP65 rated plug |
| Display | LCD 1602 |
| Interface | RS485/RS232/Wifi/LAN |
How to choose the right household deye solar inverter?
1. Maximize revenue
Power conversion efficiency is a priority when purchasing a solar inverter. At present, the use of high-power and high-current components for household use has become the mainstream trend, so the first thing to consider is a on grid solar inverter or off grid solar inverter whether suitable for high-current components, which has higher conversion efficiency and lower cost.
2. Flexible adaptation
The environment of household power plants is relatively complex, and on grid solar inverter needs to have functions such as weak grid support, overvoltage derating, and reactive power compensation to reduce fault alarms. The number of MPPTs is also one of the important indicators to be considered: multi-channel MPPT configurations can be flexibly configured for different orientations, different roofs, and components of different specifications.
3. Simple installation
Small size and light weight models are easier to install. At the same time, you should choose an inverter that has been set in advance before leaving the factory. After it is installed at the user's home, it can be used after powering on, which saves debugging time and is more convenient.
4. Safe and stable
Since many on grid solar inverters are installed outdoors, the IP waterproof and dustproof rating is a protection index that cannot be ignored. The solar inverter is operating normally.
5. Intelligent management
In today's digital age, intelligent devices can provide users with more convenience. An inverter brand equipped with an intelligent management platform can bring great convenience to users in power plant management: first, you can monitor the power plant with a smartphone, check the power plant operation data anytime, anywhere, and keep abreast of the power plant status. At the same time, the manufacturer can find problems through remote diagnosis, analyze the cause of the fault, provide solutions, and solve problems remotely in a timely manner.
