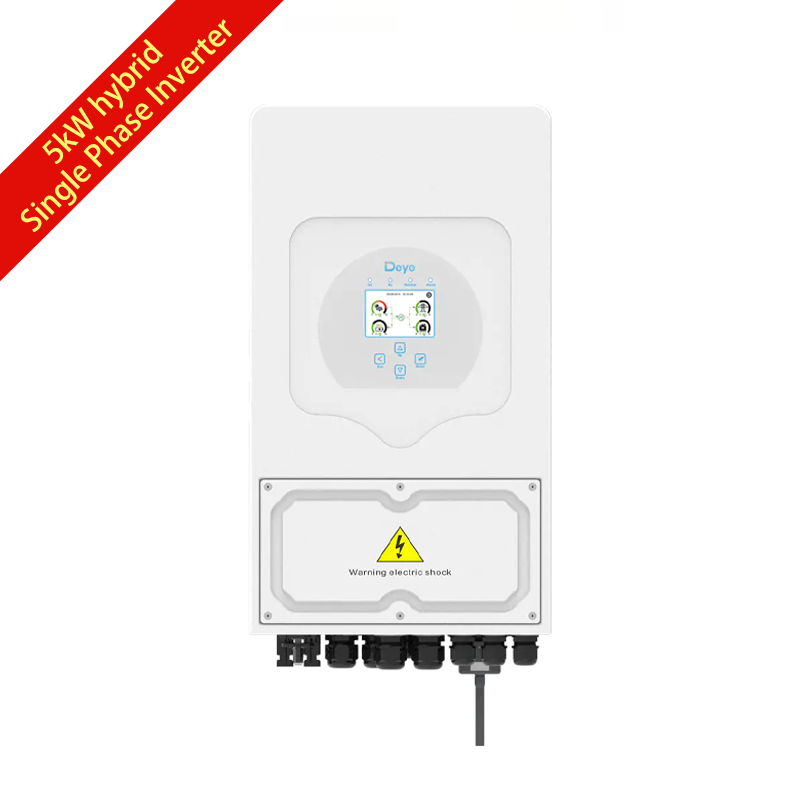

Deye 5kW Single Phase Hybrid Solar Inverter
ABOUT
Deye 5kW Single Phase Hybrid Solar Inverter
| Model | SUN-5K-SG03LP1-EU |
| Battery Input Data | |
| Battery Type | Lead-acid or Li-ion |
| Battery Voltage Range (V) | 40~60V |
| Max. Charging Current (A) | 120 |
| Max. Discharging Current (A) | 120 |
| Charging Curve | 3 Stages / Equalization |
| External Temperature Sensor | Yes |
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS |
| PV String Input Data | |
| Max. DC Input Power (W) | 6500 |
| Rated PV Input Voltage (V) | 370(125～500） |
| Start-up Voltage (V) | 125 |
| MPPT Range (V) | 150-425 |
| Full Load DC Voltage Range (V) | 300-425 |
| PV Input Current (A) | 13+13 |
| Max. PV ISC (A) | 17+17 |
| Number of MPPT / Strings per MPPT | 2/1+1 |
| AC Output Data | |
| Rated AC Output and UPS Power (W) | 5000 |
| Max. AC Output Power (W) | 5500 |
| Peak Power (off grid) | 2 times of rated power, 10 S |
| Power Factor | 0.8 leading to 0.8 lagging |
| Max. Continuous AC Passthrough (A) | 35 |
| Output Frequency and Voltage | 50/60Hz;L/N/PE 220/230Vac（single phase） |
| Grid Type | Single Phase |
| Current Harmonic Distortion | THD<3% (Linear load<1.5%) |
| Efficiency | |
| Max. Efficiency | 97.60% |
| Euro Efficiency | 97.00% |
| MPPT Efficiency | 99.90% |
| Protection | |
| PV Input Lightning Protection | Integrated |
| Anti-islanding Protection | Integrated |
| PV String Input Reverse Polarity Protection | Integrated |
| Insulation Resistor Detection | Integrated |
| Residual Current Monitoring Unit | Integrated |
| Output Over Current Protection | Integrated |
| Output Shorted Protection | Integrated |
| Surge protection | Integrated |
| Certifications and Standards | |
| Grid Regulation | CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11 |
| Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
| General Data | |
| Operating Temperature Range (℃) | -45~60℃, >45℃ Derating |
| Cooling | Natural cooling |
| Noise (dB) | <30 dB |
| Communication with BMS | RS485; CAN |
| Weight (kg) | 20.5 |
| Size (mm) | 330W×580H×232D |
| Protection Degree | IP65 |
| Installation Style | Wall-mounted |
| Warranty | 5 years |
5kW Single Phase Hybrid Solar Inverter
This inverter supports parallel operation. The installers can deploy single and three phase systems with up to 6 inverters is parallel.
The solar inverter can be expanded to large single and three phase system. And enable parallel function up to three inverters.
The hybrid solar inverter ensures that the solar power you produce is used in the best possible way. The product can cover an especially large portion of your energy needs and enable you to greater independence from the escalating energy costs. The higher your self-consumption is, the lower your electricity bill will be.
With our product, you can generate your own energy and consume it instantly while you’re at home. When you are away, the surplus energy is stored in batteries for later, and can be used when you are back home, at night, or during a cloudy day. This solar inverter can also be used as an off-grid one to power up your lights and other appliances when there is power failure from the national grid.
The power density can scalled up by connecting up to 6 inverters in parallel. The communication board for parallel operating included.
Functions:
Self-consumption and feed-in to the grid
User-adjustable battery charging current suits different types of batteries
Built-in Timer for various mode of on/off operation
Multiple communication for RS-485 and CAN
Monitoring software for real time status display and control
Custom-made firmware by ODM contract
The hybrid solar inverter comes as single- and three-phase system that can be used in parallel mode, forming large three-phase power supplies. The product includes a 5-year warranty, and sells at the most competitive prices on the market.
For the first time, we give clients the unique opportunity to produce and consume their own electricity. It is great to be independent!
