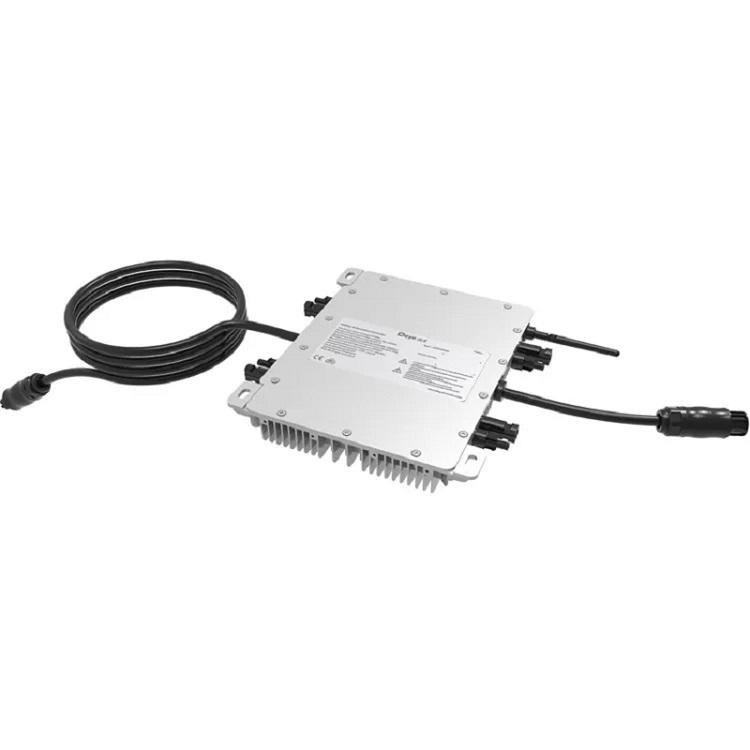

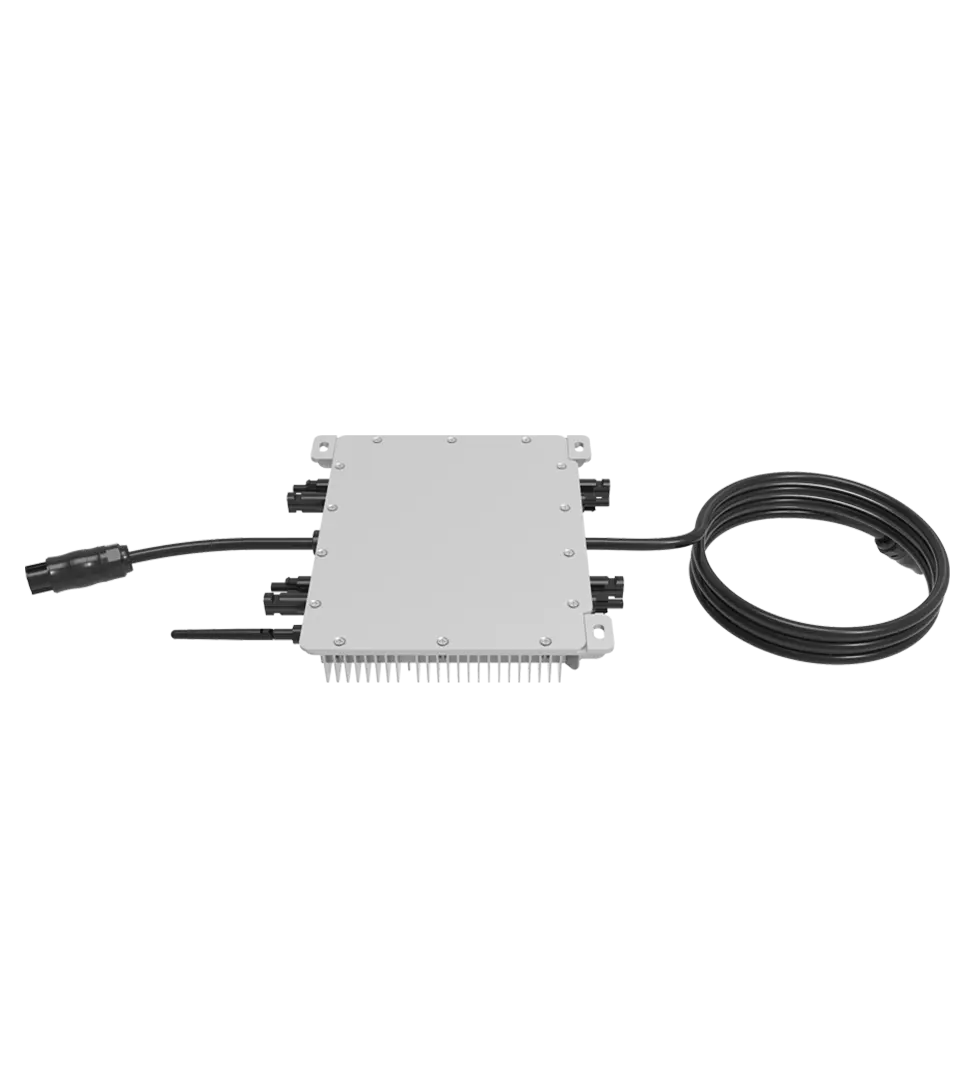

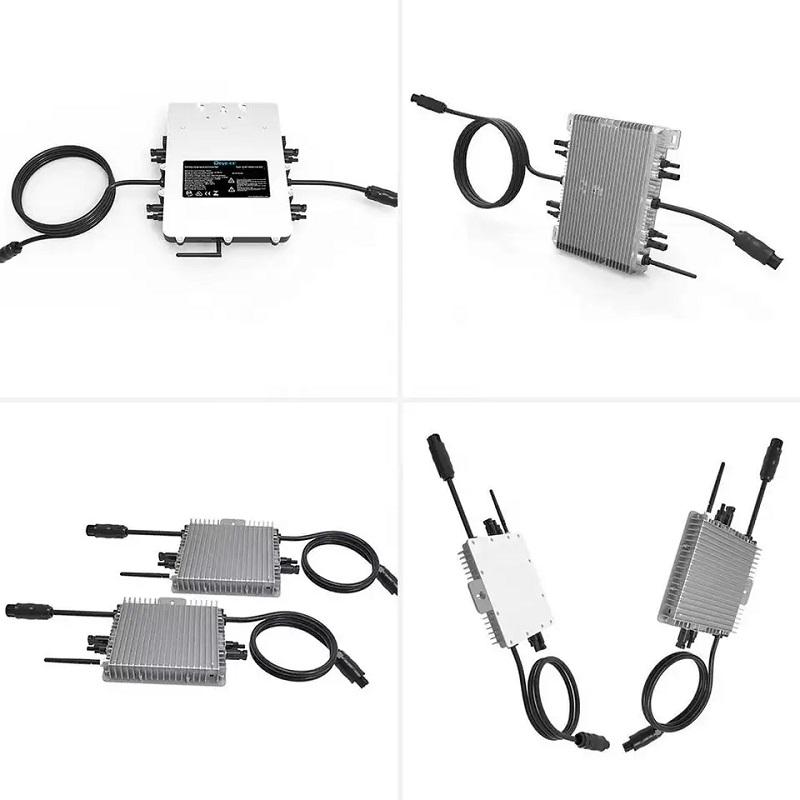

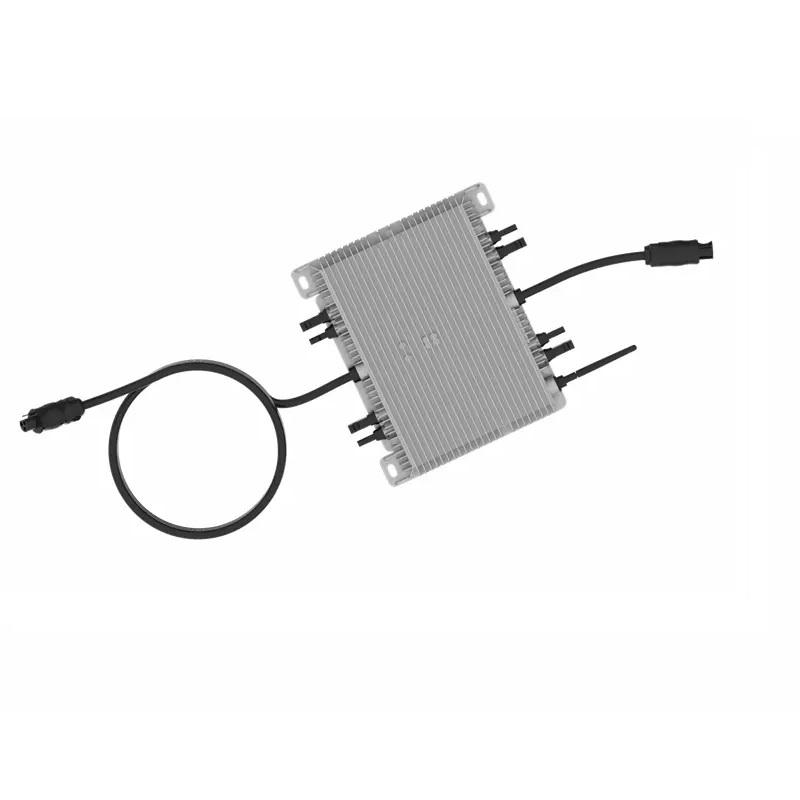

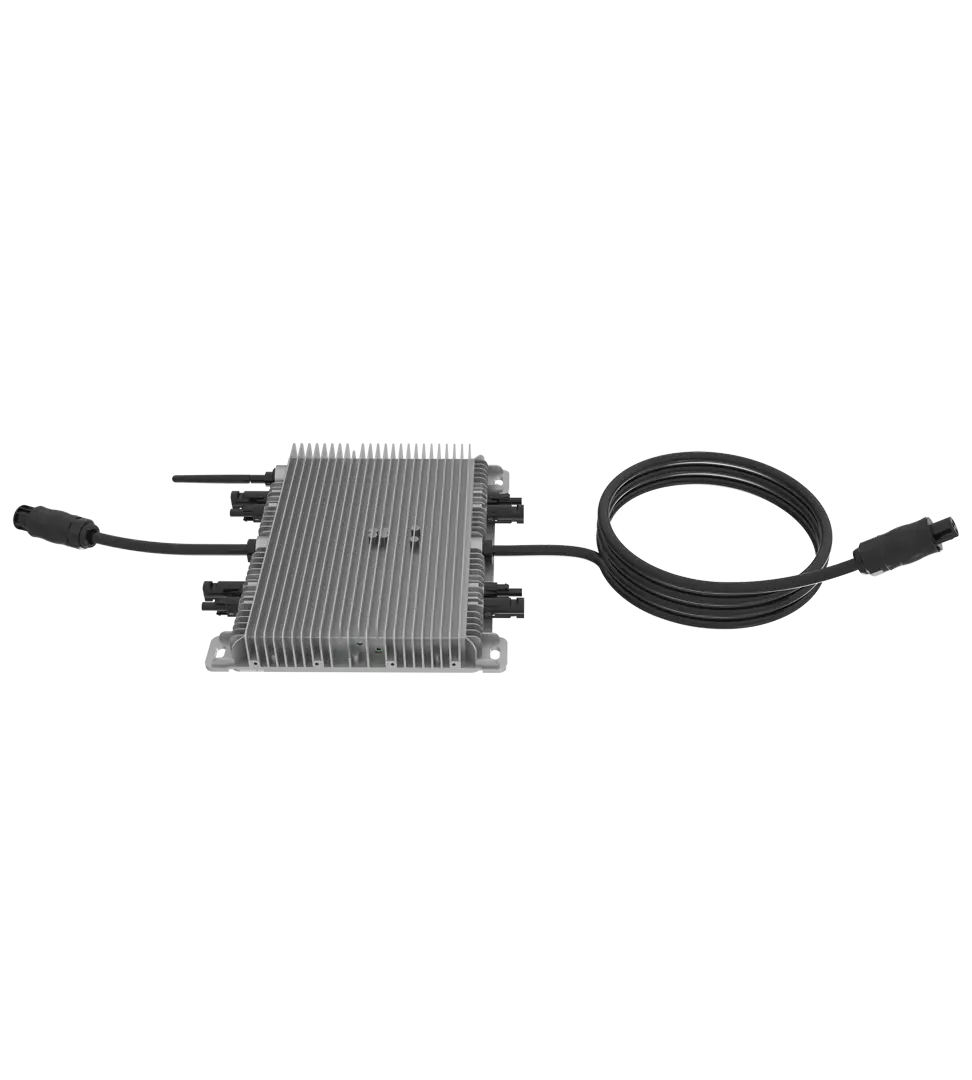

Deye 1300w-2000w Microinverter SUN1300-2000G3-US-220/EU-230 Featured Image
  • Deye 1300w-2000w Microinverter SUN1300-2000G3-US-220/EU-230
  • Deye 1300w-2000w Microinverter SUN1300-2000G3-US-220/EU-230
  • Deye 1300w-2000w Microinverter SUN1300-2000G3-US-220/EU-230
  • Deye 1300w-2000w Microinverter SUN1300-2000G3-US-220/EU-230
  • Deye 1300w-2000w Microinverter SUN1300-2000G3-US-220/EU-230

Deye 1300w-2000w Microinverter SUN1300-2000G3-US-220/EU-230

Short Description:



Model Number: SUN1300-2000G3-US-220/EU-230
Input Voltage: 60V
Output Voltage: 240V
Output Current: 2.17-4A
Output Frequency: 50Hz/60Hz
Output Type: Single
Size: 267W×300H×42D
Type: DC/AC Inverters
Inverter Efficiency: 99%
Certificate: EN50549,VDE0126,VDE4105,IEC62109,CE,INMETRO
Warranty: 10years
Weight: 5.2kg


Product Detail

Product Tags

ABOUT

Main Product

Rechargeable battery, lithium ion battery, lipo battery and LiFePO4 battery. They're used in energy storage system and electric mobility products.

Protect Function

We assemble the battery with PCM/BMS which protection batteries from over-charge,over-discharge,over-current,short-circuit and high

Payment Term

Our payment term is usually 30% deposit before production and 70% balance before shipment. Other requirements also can negotiate.

Customization

Yes, we can support. Please inform us formally before our production and confirm the design firstly based on our sample.

+
Years Of Experiences
+
Professional Experts
+
Talented People
W+
Happy Clients

Deye SUN1300-2000G3-US-220/EU-230 | Single Phase | 4 MPPT

Model SUN1300G3-US-220 SUN1300G3-EU-230 SUN1600G3-US-220 SUN1600G3-EU-230 SUN2000G3-US-220 SUN2000G3-EU-230
Input Data (DC)
Recommended input Power (STC) 210~420W (4 Pieces) 210~500W (4 Pieces) 210~600W (4 Pieces)
Maximum input DC Voltage 60V
MPPT Voltage Range 25~55V
Full Load DC Voltage Range (V) 26.5~55V 33~55V 40~55V
Max. DC Short Circuit Current 4×19.5A
Max. input Current 4×13A
No.of MPP Trackers 4
No.of Strings per MPP Tracker 1
Output Data (AC)
Rated output Power 1300W 1600W 2000W
Rated output Current 5.9A 5.7A 7.3A 7A 9.1A 8.7A
Nominal Voltage / Range (this may

vary with grid standards)

 220V/

0.85Un-1.1Un

 230V/

0.85Un-1.1Un

 220V/

0.85Un-1.1Un

 230V/

0.85Un-1.1Un

 220V/

0.85Un-1.1Un

 230V/

0.85Un-1.1Un
Nominal Frequency / Range 50 / 60Hz
Extended Frequency/Range 45~55Hz / 55~65Hz
Power Factor >0.99
Maximum units per branch 4 4 3
Efficiency
CEC Weighted Efficiency 95%
Peak Inverter Efficiency 96.5%
Static MPPT Efficiency 99%
Night Time Power Consumption 50mW
Mechanical Data
Ambient Temperature Range -40~65℃
Size (mm) 267W×300H×42D (Without mounting bracket and cable)
Weight (kg) 5.2
Cooling Natural cooling
Enclosure Environmental Rating IP67
Features
Communication WIFI
Grid Connection Standard
VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1,
G98, G99, C10-11, UNE217002, NBR16149/NBR16150
Safety EMC / Standard UL 1741, IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-2, IEC61000-3-3
Warranty 10 years
