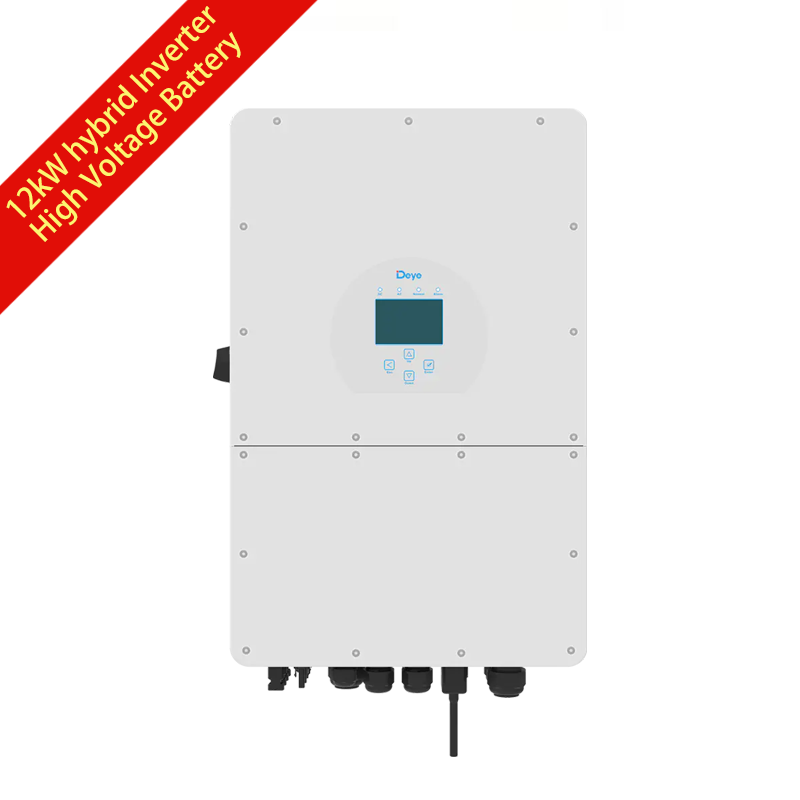

Deye 12kW Three Phase High Voltage Hybrid Solar Inverter

Short Description:

Place of Origin: Zhejiang, China
Weight: 30.5KG
Size: 408*638*237mm
Type: DC/AC Inverters
PV Input Current: 26A+20A
Rated AC Output and UPS Power (W): 12000
Number of Battery Input: 1
Grid Type: Three phase
MPPT Efficiency: 99.9%
Certificate: CEI,VDE,NBR,IEC
Warranty: 5 Years
Application: Solar Power System Home
Protection Degree: IP65
Installation Style: Wall-mounted
Communication with BMS: RS485; CAN


Product Detail

Product Tags

ABOUT

Main Product

Rechargeable battery, lithium ion battery, lipo battery and LiFePO4 battery. They're used in energy storage system and electric mobility products.

Protect Function

We assemble the battery with PCM/BMS which protection batteries from over-charge,over-discharge,over-current,short-circuit and high

Payment Term

Our payment term is usually 30% deposit before production and 70% balance before shipment. Other requirements also can negotiate.

Customization

Yes, we can support. Please inform us formally before our production and confirm the design firstly based on our sample.

+
Years Of Experiences
+
Professional Experts
+
Talented People
W+
Happy Clients

Deye 12kW Three Phase High Voltage Hybrid Solar Inverter

Model SUN-12K-SG01HP3-EU-AM2
Battery Input Data
Battery Type Lithium-ion
Battery Voltage Range (V) 160~700V
Max. Charging Current (A) 37
Max. Discharging Current (A) 37
Number of battery input 1
Charging Strategy for Li-Ion Battery Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W) 15600W
Max. DV Input Voltage (V) 1000
Start-up Voltage (V) 180V
MPPT Range (V) 150V-850V
Full Load DC Voltage Range (V) 340-850
Rated DC Input Voltage (V) 600
PV Input Current (A) 26A+20A
Max. PV ISC (A) 39A+30A
Number of MPPT / Strings per MPPT 2/2+1
AC Output Data
Rated AC Output and UPS Power (W) 12000W
Max. AC Output Power (W) 13200W
Peak Power (off grid) 1.5 times of rated power, 10 S
AC Output Rated Current (A) 18.2/17.4
Max. AC Current (A) 25
Max. Continuous AC Passthrough (A) 80A
Output Frequency and Voltage 50/60Hz;3L/N/PE 220/380Vac，230/400Vac
Grid Type Three Phase
Current Harmonic Distortion <0.5%1n
Efficiency
Max. Efficiency 97.60%
Euro Efficiency 97.00%
MPPT Efficiency 99.90%
Protection
PV Input Lightning Protection Integrated
Anti-islanding Protection Integrated
PV String Input Reverse Polarity Protection Integrated
Insulation Resistor Detection Integrated
Residual Current Monitoring Unit Integrated
Output Over Current Protection Integrated
Output Shorted Protection Integrated
Output Over Voltage Protection DC Type II / AC Type Ⅲ
Surge protection Integrated
Certifications and Standards
Grid Regulation VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150
Safety EMC / Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
General Data
Operating Temperature Range (℃) -45~60℃, >45℃ Derating
Cooling Smart cooling
Noise (dB) <55 dB
Communication with BMS RS485; CAN
Weight (kg) 30.5
Size (mm) 408W×638H×237D
Protection Degree IP65
Installation Style Wall-mounted
Warranty 5 years
